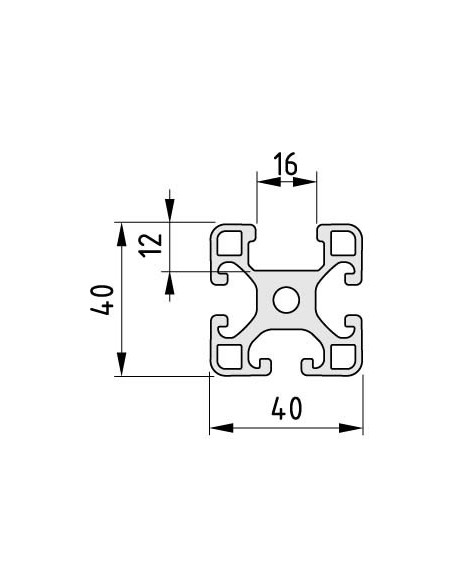

Perfil 8 40x40 F14 L natural

Perfil 8 40x40 F14 L, naturalPropiedades

Característica	Natural
ESD	si
Sección transversal	6.39
Momento de inercia, torsional	1.42
Momento de inercia, eje x	8.25
Momento de inercia, eje y	9.24
Peso, espec. Longitud	1.73
Unidad de suministro	corte máx. 6000 mm
Material	Al, anodizado
Momento resistente, eje x	3.94
Momento resistente, eje y	4.62
Serie	8



Descripción

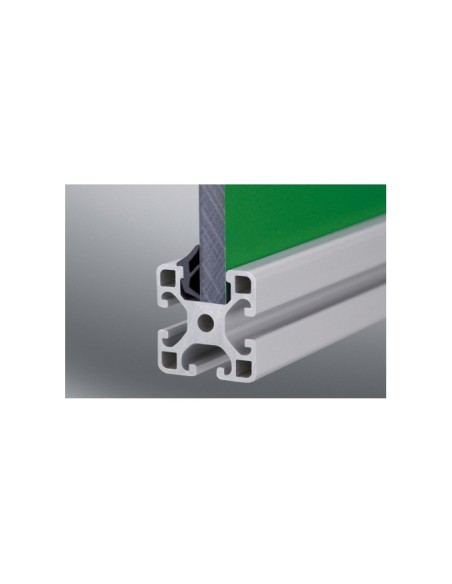

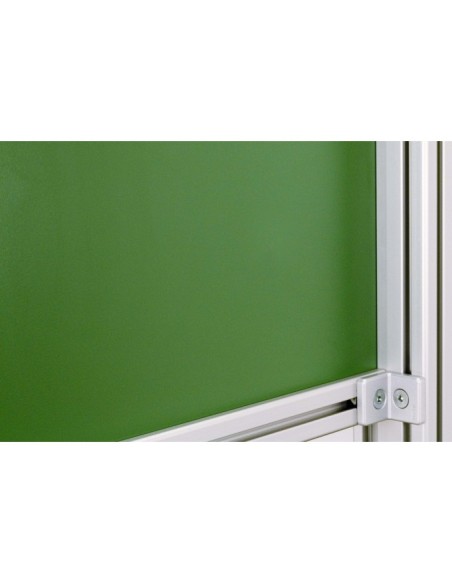

Profiles 8 F14 light feature extra-wide grooves - panel elements up to 14 mm thick can be fitted into this groove and secured here with Lip Seals to prevent dust penetration and movement.Profile 8 80x40 F14 light has two wide grooves located opposite each other, making this profile ideal as a Stand Profile for enclosures and guards.



Profiles 8 F14 light feature extra-wide grooves - panel elements up to 14 mm thick can be fitted into this groove and secured here with Lip Seals to prevent dust penetration and movement.Profile 8 80x40 F14 light has two wide grooves located opposite each other, making this profile ideal as a Stand Profile for enclosures and guards.

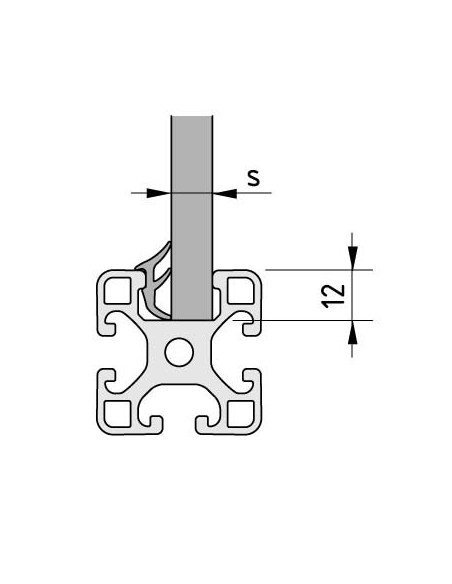

Según el grosor del panel instalado, se recomienda el uso de las siguientes juntas:s = 10 – 12 mm   => Junta 8 2-4 mms = 12 – 14 mm   => Junta 8 4-6 mm





DescargasESD Product Qualification
